Terra HP Charger – Up to 350 kW
TERRA HP

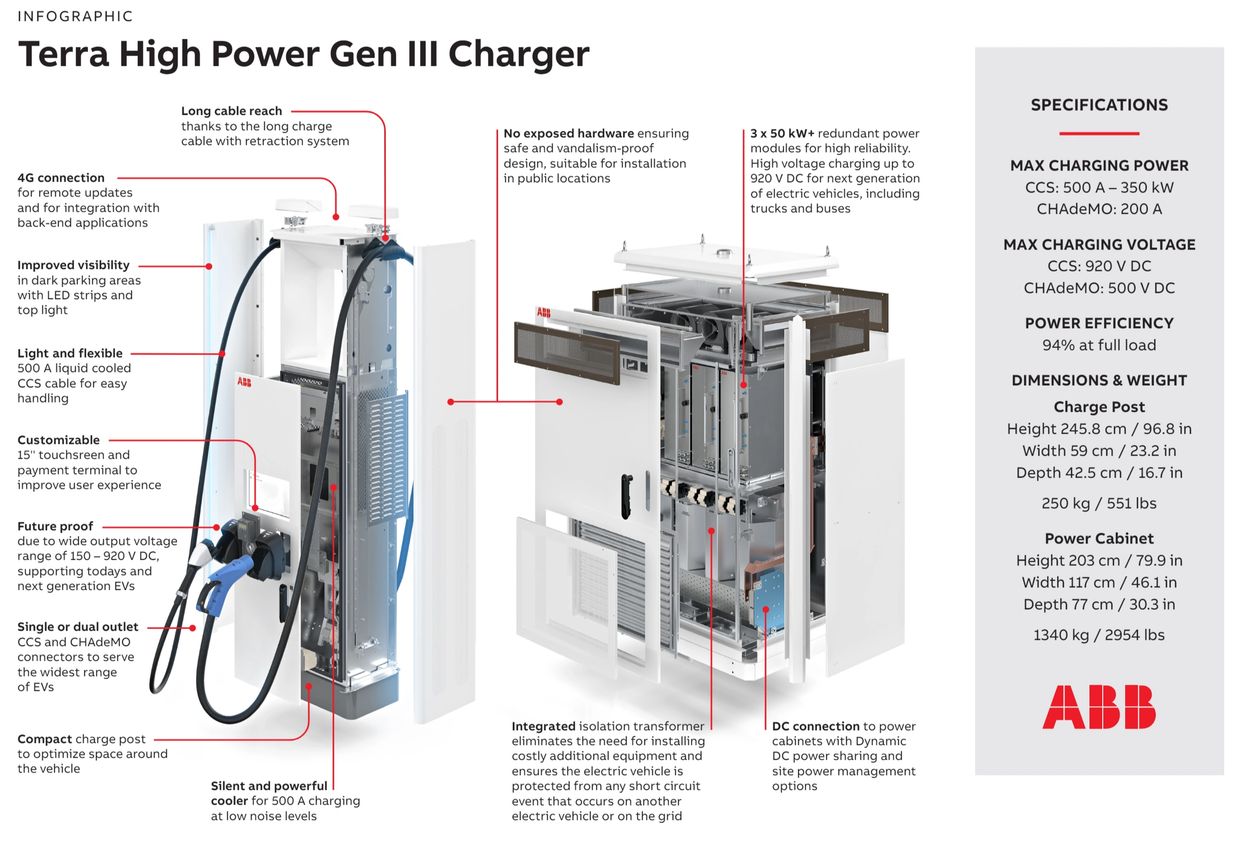

The third generation of Terra HP charge post is a modular 175-350 kW high-power charger ideally suited for highway corridor and EV fleet operations.
Infrastructure needs are growing and the demand for faster and higher power is continuously increasing. With ABB Dynamic DC power sharing technology, power cabinets can be connected to charge one vehicle at up to 350 kW and 500 A or two vehicles simultaneously at up to 175 kW and 375 A. The Terra HP generation III charge post offers a premium charging experience with high-output power at low noise levels, a long charge cable with cable retraction system, small footprint of the user unit, and several authentication, payment and customization options
Premium user experience
Easy to use
The Terra HP generation III charge post offers a premium charging experience with high-output power at low noise levels, a long charge cable with cable retraction system, small footprint of the user unit, and several authentication, payment and customization options
Brand experience
Customizable brand
Make the charger a real part of your brand image for an optimum user experience. Customize the charger by applying wrapping, selecting a matching color for the LED strips, and customizing the user interface to match brand identity.
Profitable operation
Built for business
Terra HP fully supports commercial operation with Dynamic DC power sharing to optimize use of charging assets, site energy management solutions to enable future growth while optimizing grid connection costs, and remote software enabling a future proof system by making it possible to upgrade the capability of today’s and tomorr
